Oase ProfiClear XL Discharge Module - Pump Fed

Oase ProfiClear XL Discharge Module - Pump Fed


Product Description

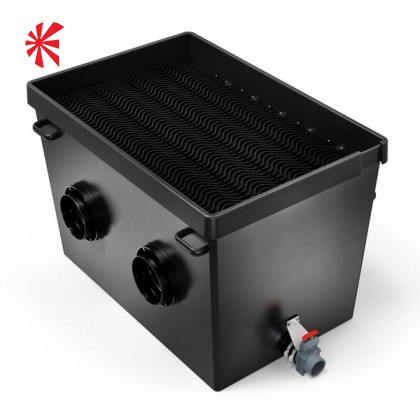

Oase ProfiClear XL Discharge Module - Pump Fed

The new ProfiClear XL Pumped Discharge Module has been designed to provide multiple return points of the processed water in a pump-fed, gravity return scenario.

The Pumped Discharge Module features 5 x DN110 return outlets to maximise the processed water flow back to the pond.

The XL Discharge module is the final stage of the ProfiClear XL filter system, connecting after the XL Moving Bed Module with Pond Pads or the XL Moving Bed Module with Hel-X via 2 x 180mm inlets.

Internally, the pump-fed discharge module features a specially developed fixed bed ‘Clear Wave’ biological segment which will drastically reduce biofilm via anaerobic bacterial breakdown.




Dimensions (L x W x H)mm1330 x 875 x 820

Net weight 101.60 kg

Guarantee (+ request guarantee)Years2 + 1

Temperature display No

Material GRP Duroplast/stainless steel

Number of inlets 2

Inlet connections 180mm

Inlet connections 180mm

Number of outlets 5

Outlet connections DN 110

Sludge discharge connections DN 75

Connection to AquaOxy 2000, ProfiClear Premium DF-XL pump-fed EGC, ProfiClear Premium XL Moving Bed

Min. flow rate 25000 l/h

Max. flow rate 50000 l/h

Installation height above water level 32.0cm

Type of use Pump fed system

Other Aeration pre-installed
