AquaForte EB Series EconoBead Filter - EB60
Available
Product Description

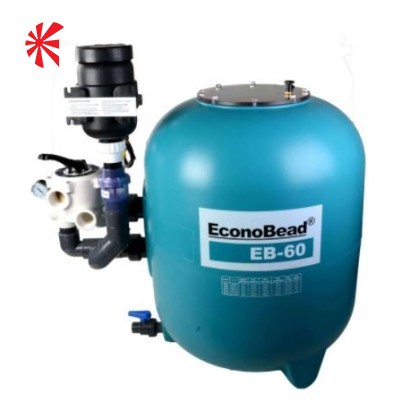

AquaForte EB Series - EconoBead Filter EB60
The economical answer to imitation filters, made by the Beadfilter experts!
The Econo Bead filters have a strong quality polypropylene vessel and are standard equipped with:
BEADFILTER OPERATION
Water enters into the tank (A) under pressure from the pump. The solids are collecting in the centre of the filter, waiting to be hydraulically purged out under pressure from the pump. All you have to do is open the sludge separation valve (B) with the pump running and the filter in it's normal filtration mode and the heavier solids are evacuated in just a couple of seconds. What does all of this mean? The most unique, efficient filter of its kind. An efficient filter doesn’t hold solids, it gets rid of them! Now that the water is in the tank it is forced slowly upward in the vessel through millions of beads about 2-3mm in size. On these beads are billions of nitrifying bacteria and these hungry bacteria are consuming vast amounts of ammonia, nitrites, etc. and performing what is known as nitrification. This is how we actually have clean, healthy water is due to the work these minute organisms are performing. Water continues to flow upward through the beads and exits out of the vessel via the top spray bar (C). This water then continues into the multi port valve and depending on the setting on the multi port (FILTER), the water continues then to the pond.
The EconoBead® series have another unique feature: the Blower (D). This blower is mounted on a special air check valve. It is important that the valve be in the rinse position for the blower agitation of the beads. When the blower is active the beads and debris are dispersed throughout the interior of the filter. This breaks up the beads and releases the trapped particles. This debris then can easily be backwashed out to waste through the spray bar (C). After the RINSE cycle with air we perform a backwash in which the water enters at C en leaves the filter through A. After the backwash there will be another RINSE cycle but with water instead of air. This takes any remaining debris and sends it to waste (from A to C), instead of sending a cloud of dirt back to the pond.
THE MULTIPORT VALVE “FILTER”:
Water enters the Beadfilter at (A) and goes upward through the beads and exits out of the vessel via the top spray bar (C) to return to the pond. “RECIRCULATE” : With the “RECIRCULATE” feature you can bypass your filter and flow the water from pond to pump to multiport and back to pond. This comes in handy when you are treating the pond. “WASTE”: allows the water to bypass the filter and go directly to waste, such as when you are performing a backwash cycle. You can also use the waste setting to vacuum out your pond without the garbage going into your filter, it bypasses the filter via the multiport and goes out to waste. “RINSE”: The first time we use the RINSE feature to wash the beads with the blower which forces huge amounts of air into the vessel and since air rises in water, the beads are broken apart by this action, making a thorough backwash easy to accomplish. After the backwash function we use the RINSE feature again but now with water instead of air. It is impossible to get every little bit of debris out of a filter and this causes these minute particles to exit in the waste line instead of going back into the pond. “BACKWASH”: In this position we let the pump run until the water in sight glass is clear (normally 1 to 2 minutes). The water enters the filter from the top spray bar (C) and exits the vessel at (A) and goes out to waste. “CLOSED”: Valve closed. Never use this position with the pump running.
Features:
- A bottom drain to remove the sludge from the bottom
- Transparent lid
- Media Beads included
- 6-way valve and a very reliable blower!
- The blower is also equipped with a silencer.
- Comes with a big lid for easy access
- CAUTION: Max. working pressure 1,2 bar
Model EB40
- Size 40 x 68cm
- Max Flow 5m³/h - 1100 gph
- Suitable for Pond Size 12,600 lts - 2800 gallons
- Max Fish Load 35kg
- Max Feed Rate Per Day 350g
- Media Beads 22kg
Model EB50
- Size 50 x 75cm
- Max Flow 9m³/h - 2000 gph
- Suitable for Pond Size 21,100 lts - 4700 gallons
- Max Fish Load 50kg
- Max Feed Rate Per Day 500g
- Media Beads 40kg
Model EB60
- Size 60 x 85cm
- Max Flow 14m³/h - 3000 gph
- Suitable for Pond Size 37,000 lts - 8200 gallons
- Max Fish Load 80kg
- Max Feed Rate Per Day 800g
- Media Beads 65kg
Model EB60 (2" Connectors)
- Size 60 x 85cm
- Max Flow 14m³/h - 3000 gph
- Suitable for Pond Size 40,500 lts - 9000 gallons
- Max Fish Load 80kg
- Max Feed Rate Per Day 800g
- Media Beads 65kg
Model EB100
- Size 75 x 113cm
- Max Flow 25m³/h - 5500 gph
- Suitable for Pond Size 50,000 lts - 12000 gallons
- Max Fish Load 100kg
- Max Feed Rate Per Day 1000g
- Media Beads 80kg
Model EB140
- Size 90 x 126cm
- Max Flow 25m³/h - 5500 gph
- Suitable for Pond Size 90,000 lts - 20000 gallons
- Max Fish Load 150kg
- Max Feed Rate Per Day 1500g
- Media Beads 100kg
