£950.00 inc VAT

Quantity:



MPN: BECO

UK mainland delivery from FREE

Earn up to 475 loyalty points with this product.

pdfInstruction Manual for Speck Badu Eco-Touch Pro

WE WILL BEAT ANY PRICE ON THIS PRODUCT. LET US KNOW WHERE YOU FOUND IT AND WE WILL REFUND THE DIFFERENCE*
The innovative and patented motor technology of the Badu Eco Touch Pro is revolutionising the previous pump standards from the point of view of energy consumption, operating costs and water quality. The pump has three motor speeds that can be set individually. This guarantees the most effective use and maximum energy saving in all performance ranges. Operation is intuitive.

Different motor speeds for optimum output

The choice between 3 motor speeds ensures the most effective output for all operating modes:

- Night Mode (low motor speed)
- Filter Operation (medium motor speed).
- Backwashes or solar absorber operation (high motor speed).

Individual adjustment for maximum savings

The three variable motor speeds can be programmed individually and can be adjusted from 1000 to 2830 rpm in steps of 50. The empirical values 2000, 2400 and 2830 rpm are then pre-programmed.

Practical programming and information

A display assists in setting and showing the motor speeds that have been programmed. The Eco mode deactivates the display illumination, minimising its energy consumption in this way.

The most comfortable handling:

The BADU Eco Touch Pro can be controlled in a potential-free manner and so can also be networked with the filter control.

Features of the Speck Badu Eco Touch Pro:
  • Corrosion-resistant due to the high quality plastics used which is also 100% recyclable
  • Self-priming which gives a steady circulation and uncomplicated installation
  • Electrically safe, because of the total separation between the water and the pump shaft.
  • Highly efficient due to the excellent efficiency rating
  • Pump casing and internal parts made from Polypropylene
  • German enginerring and design combine for ultimate efficiency
  • Temperature stability up to 60°C
  • German design mechanical seal using carbon to ceramic sealing surfaces
  • Simple servicing
  • Fully factory tested
  • New 2 part easy screw on/off lid
  • Stainless steel shaft
  • 24 month ex-factory warranty under normal operating conditions from date of purchase

Field of Application
The pump can be installed max. 3 m above or below water level (not submersed, this is an external pump).

*Acceptance only on like for like products, status of the comparison companies stock level and the comparison company is not selling for less than cost.

Please note that these pumps do not come with electrical cable or a plug. No special skills are required to wire these and we can help you over the phone or in the shop to get you up and running.
Technical data

Flow rate Q: 13 m³/h
Total head H: 8 m WS
Pond size: 30 - 70 m³
Motor performance: 0.30 kW - 0.75 kW
Strainer capacity: approx. 3L
Strainer basket mesh size: approx. 3.2 x 2.6 mm

Materials used

Pump casing: PP TV 20
Flange: PP TV 40
Gland housing: PP TV 40
Diffuser: PA 6 GF 15
Impeller: PA 66 GF 30
Strainer basket: PP
Mechanical seal: carbon / ceramic / NBR
Bolts: stainless steel, galvanized

Delivery Options Available

Courier Delivery: Next Working Day Service (for in stock items)
Courier Delivery Saturday Delivery Service
Royal Mail - First & Second class: 1-3 Working Day Service

If a product is deemed to be fragile/bulky or heavy, surcharges may be added to your delivery charges at checkout.
An item will be noted as In stock when you select the product and size you require. Available items are usually in stock that day or within 1-2 working days, with the exception of some bulkier or high value items.
All delivery service times apply to stock items ordered before 1pm

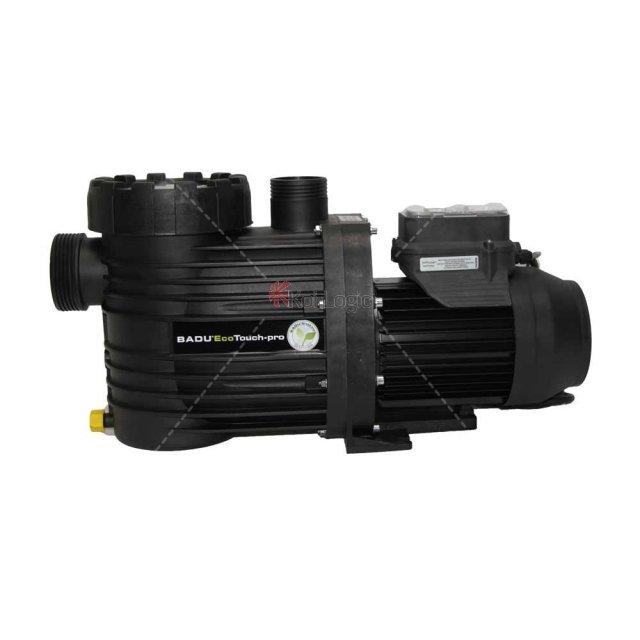

Speck - Badu Eco Touch Pro
